APV hit-related standard handlers¶

This page lists handlers related to detectors based on APV chip (Micromegas and GEMs).

Subjects: hit and APV raw data structs¶

All the handlers listed below operate with the instances of the APVHit C/C++ structure (and, optionally with RawDataAPV instance accessed by rawData attribute):

struct APVHit¶

Representation of a hit on APV-based detector entity.

GETTER:

rawData.wireNo – Triggered wire number (detector’s channel) (propagated from rawData:RawDataAPV, returns wireNo)
rawData.chip – chip ID wrt DDD DAQ (propagated from rawData:RawDataAPV, returns chip)
rawData.srcID – source ID wrt DDD DAQ (propagated from rawData:RawDataAPV, returns srcID)
rawData.adcID – adc ID wrt DDD DAQ (propagated from rawData:RawDataAPV, returns adcID)
rawData.chipChannel – channel number inside chip (before remapping) (propagated from rawData:RawDataAPV, returns chipChannel)
rawData.timeTag – Time with the respect to trigger time (propagated from rawData:RawDataAPV, returns timeTag)
maxCharge – Hit max charge wrt APV waveform
timeRise – Time of rising front
a02 – APV samples amplitude ratio a0/a2
a12 – APV samples amplitude ratio a1/a2
t02 – Tangent values of raising front, at a0 and a2
t12 – Tangent values of raising front, at a1 and a2
t02sigma – Error estimation of tangent raising front
t12sigma – Error estimation of tangent raising front
time – Estimated hit time, [SADC sample #]
timeError – Error of hit time estimation, [SADC sample #]

Public Functions

APVHit(LocalMemory&)¶: A ctr, needs the pool allocator instance to be bound with.

Public Members

mem::Ref<RawDataAPV> rawData¶: Hit raw data (as got from DDD digit)

double maxCharge¶: Hit max charge wrt APV waveform.

double timeRise¶

Time of rising front

Todo:: seemed to be not used; remove?

double a02¶: APV samples amplitude ratio a0/a2.

double a12¶: APV samples amplitude ratio a1/a2.

double t02¶

Tangent values of raising front, at a0 and a2

Todo:: More doc on it

double t12¶

Tangent values of raising front, at a1 and a2

Todo:: More doc on it

double t02sigma¶

Error estimation of tangent raising front

Todo:: More doc on it

double t12sigma¶

Error estimation of tangent raising front

Todo:: More doc on it

double time¶: Estimated hit time, [SADC sample #].

double timeError¶: Error of hit time estimation, [SADC sample #].

struct RawDataAPV¶

Raw data of APV digit

GETTER:

wireNo – Triggered wire number (detector’s channel)
chip – chip ID wrt DDD DAQ
srcID – source ID wrt DDD DAQ
adcID – adc ID wrt DDD DAQ
chipChannel – channel number inside chip (before remapping)
timeTag – Time with the respect to trigger time
getter for field RawDataAPV::samples disabled

Public Functions

inline RawDataAPV()¶: Default ctr (creates uninitialized instance of RawDataAPV.

inline RawDataAPV(LocalMemory&)¶: A ctr, ignores memory arg (creates uninitialized instance of RawDataAPV. Needed to simplify compatibility with template code.

Public Members

APVDAQWire_t wireNo¶: Triggered wire number (detector’s channel)

uint16_t chip¶: chip ID wrt DDD DAQ

uint16_t srcID¶: source ID wrt DDD DAQ

uint16_t adcID¶: adc ID wrt DDD DAQ

uint16_t chipChannel¶: channel number inside chip (before remapping)

uint32_t timeTag¶: Time with the respect to trigger time.

uint32_t samples[3]¶: Measured amplitude samples on a wire.

Note, that APVHit may have its rawData reference unset. For instance, when events are read from Monte-Carlo data source.

Handlers list¶

This handlers deal with APV hits at the very basic level of DAQ digits.

group apv-handlers

class APVCalcTime : public na64dp::AbstractHitHandler<event::APVHit>¶

Uses $t_{01}$ and $t_{12}$ and error estimations to calculate time and hit time error for APVHit

The time and time error will be estimated by the following formulae:

$$ t = (\frac{t_{02}}{\sigma_{02}(t)^2} + \frac{t_{12}}{\sigma_{12}(t)^2}) / (\frac{1}{\sigma_{02}(t)^2} + \frac{1}{\sigma_{12}(t)^2}), \ \delta t = (\frac{1}{\sigma_{02}(t)^2} + \frac{1}{\sigma_{12}(t)^2})^{-1/2} $$

Usage info:

- _type: APVCalcTime
  # optional, hit selection expression
  applyTo: null

This handler relies on pre-calculated values within APV hit that usually acquired using some calibration data by other handler(s):

t02
t12
t02sigma
t12sigma

To obtain these values, consider using of CalcAPVTimeType1 handler.

See also

CalcAPVTimeType1

Public Functions

inline APVCalcTime(calib::Dispatcher &cdsp, const std::string &only, log4cpp::Category &logCat, const std::string &namingClass = "default")¶: Ctr: forwards calib dispatcher and detector selection args to parent class

inline virtual bool process_hit(EventID, DetID, event::APVHit &hit) override¶: Unconditionally performs APV hit time calculus based on time ratios.

class APVCalcARatios : public na64dp::AbstractHitHandler<APVHit>¶

Calculates ratios $r_{1,2}$ and $r_{1,3}$ for hits on APV detector.

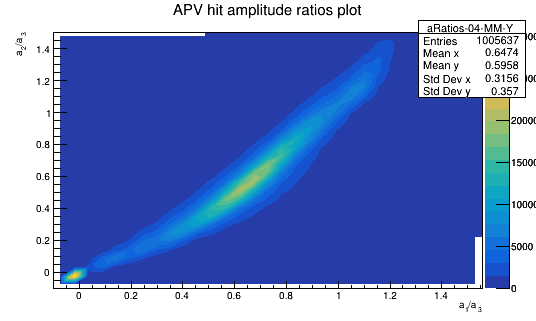

A-ratios are the useful coefficients for APV hits data quality assurance. $$ r_{1,2} = a_1/a_2, r_{1,3} = a_1/a_3 $$

../_images/apv-a-ratio.png

where $a_i, i = 1, 2, 3$ is the amplitude samples usually brought by APV chip.

Usage:

- _type: APVCalcARatios
  # optional, hit selection expression
  applyTo: null

This handler has no parameters except for usual optional applyTo detector selection.

Public Functions

APVCalcARatios(calib::Dispatcher &ch, const std::string &select, log4cpp::Category &logCat, const std::string &namingClass = "default")¶: Default ctr.

virtual bool process_hit(EventID, HitKey, APVHit &cHit)¶

Writes ratios to APVHit::a12 and APVHit::a13

If $A_2$ is null or NaN, the APVHit::a12 will be left intact. If $A_3$ is null or NaN, the APVHit::a13 will be left intact.

Returns: always true.

class APVCalcHitTimeRatios : public na64dp::AbstractHitHandler<APVHit>, public na64dp::calib::Handle<Collection<APVTimingCalib>>, public na64dp::calib::Handle<Collection<APVChannelEntry>>¶

Calculates hit times using type#1 calibration data.

Usage:

- _type: APVCalcHitTimeRatios
  # optional, hit selection expression
  applyTo: null
  # Handler behaviour on no calibration data available for certain
  # detector entry. Possible values: "ignore", "warn", "error"; opt, str
  onNoCalib: warn

Relies on standard p348reco/GEMMonitor-produced timing calibrations.

Todo:: few error reports and meaningful assertions
